How To Diagnose & Repair Diesel Transmission Issues

Diesel transmission systems are complex mechanisms crucial for the smooth operation of diesel-powered vehicles. They differ significantly from their gasoline counterparts in terms of design, functionality, and durability. Understanding the basics of how these systems work is essential for anyone involved in diesel transmission repair. A diesel transmission's primary role is to efficiently transfer power from the engine to the wheels, adjusting the gear ratio between them. This adjustment allows the engine to operate efficiently at various speeds. Familiarizing oneself with the components and operation of these systems is the first step toward effective diagnosis and repair.

Underlying Causes of Diesel Transmission Failures

Diesel transmission failures often result from a combination of factors unique to diesel-powered vehicles. One of the most significant causes is poor maintenance—neglecting regular fluid changes, using the wrong type of transmission fluid, or ignoring early warning signs can all accelerate internal wear and lead to breakdowns. Unlike gasoline transmissions, diesel systems are engineered to handle much higher torque and heavier loads, which puts extra stress on key components such as clutches, torque converters, and gear sets. This added strain, especially during frequent towing or hauling, can cause parts to wear out faster if not properly maintained. Overheating is another critical factor; diesel engines generate substantial heat, and if the transmission’s cooling system is inadequate or fluid levels are low, excessive temperatures can cause fluid breakdown, seal damage, and premature component failure. Additionally, defective or substandard parts can lead to early failures even in well-maintained systems. Manufacturing defects or improper installation may also compromise transmission reliability.

Diagnosing Diesel Transmission Issues

Diagnosing transmission problems in diesel vehicles requires a systematic approach that combines visual inspections, onboard diagnostics, and real-world performance testing. One of the first signs of potential diesel transmission issues is the presence of unusual noises. These noises can vary from humming, whining, or buzzing to more severe clunking or grinding sounds. Identifying the type and source of these noises is crucial in diagnosing transmission problems. Humming or buzzing often indicates issues with fluid levels or pressure, while grinding or clunking might suggest more serious internal damage. Paying attention to when and how these noises occur - such as during gear shifts or at specific speeds - can provide valuable clues for further diagnosis.

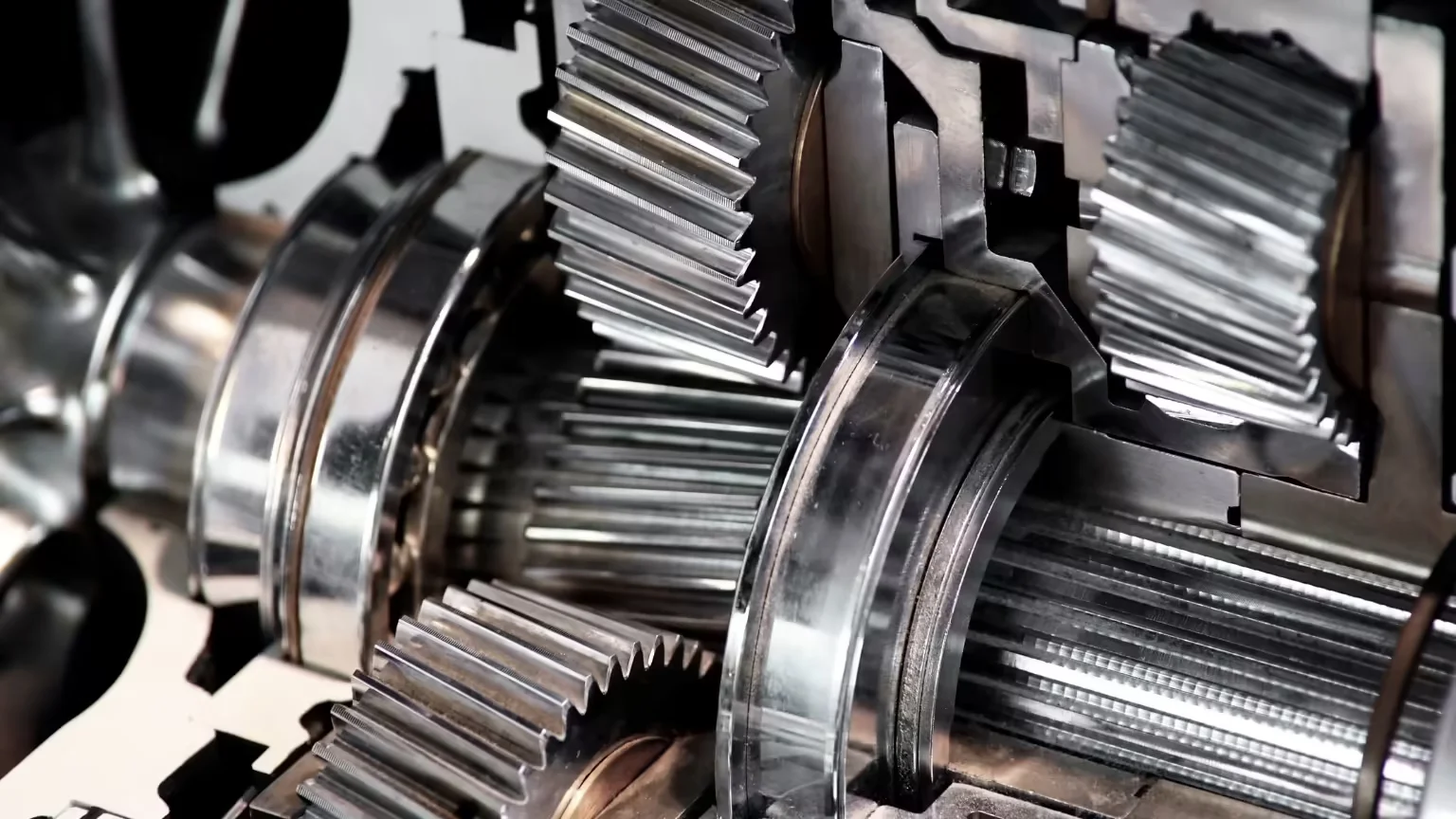

Slipping gears and delayed shifting are common indicators of a malfunctioning diesel transmission. Slipping gears exhibits a sudden change in engine pitch or speed, a lack of acceleration, or the transmission shifting gears without input. Delayed shifting, on the other hand, is noticeable when there’s a lag or delay in the vehicle’s response after shifting gears.

Addressing these issues promptly can prevent further damage to the transmission. Pay close attention to any changes in your vehicle's performance, such as unusual noises, shifting delays, or erratic shifts. Another telltale sign is the transmission warning light on the dashboard, which can indicate a range of issues, from minor sensor faults to severe mechanical failures. Regular inspections and maintenance, including checking fluid levels and conditions, can help catch problems early, making them easier to manage. Fluid leaks are often a sign of worn seals or gaskets and can lead to significant issues if not addressed. A burning smell might indicate overheating due to excessive friction within the transmission, often caused by overused or contaminated fluid. Reduced fuel efficiency can occur when the transmission fails to shift gears properly, forcing the engine to work harder. Recognizing these signs can lead to timely diesel transmission service and repair, ensuring the longevity and reliability of your vehicle.

The Diagnostic Process for Diesel Transmissions

The use of electronic scanners is a critical step in modern diesel transmission diagnostics. These scanners interface with the vehicle's onboard computer system to read and interpret trouble codes related to the transmission. This technology allows mechanics to quickly identify issues ranging from electrical malfunctions to problems with the transmission's mechanical components. Pressure testing is another vital component in diagnosing diesel transmission issues. This process involves measuring the hydraulic pressure at various points in the transmission system. Accurate pressure readings can help identify problems such as leaks, blockages, or failing pumps, which can lead to shifting difficulties and gear slippage. These tests require specific tools and expertise, emphasizing the importance of professional diagnostics in ensuring the health and functionality of the transmission.

The diagnostic process involves interpreting the data gathered from scanners, pressure tests, and fluid checks. This requires a deep understanding of diesel transmission systems and an ability to correlate the data with specific transmission behaviors and symptoms. Professional diesel transmission mechanics use this data to form a comprehensive picture of the transmission's condition, guiding them in determining the most effective repair strategies.

Specific Problems in Diesel Transmissions

The torque converter plays a pivotal role in a diesel transmission, acting as a bridge between the engine and transmission. Malfunctions in this component can lead to several issues, such as slipping, shuddering, or even complete transmission failure. Symptoms often include a noticeable decrease in fuel efficiency, strange noises during gear shifts, and transmission overheating. Diagnosing and repairing torque converter problems typically requires professional skills and tools, as it involves intricate work within the transmission system.

Solenoids in diesel transmissions control the flow of fluid and are crucial for proper gear shifting. Failures in these components can cause erratic shifting, delayed gear engagement, or even prevent the vehicle from moving. Common causes of solenoid failures include electrical issues or clogged fluid passages. Diagnosing these problems usually involves electronic diagnostic tools to check for electrical faults and pressure tests to ensure proper fluid flow. Replacing faulty solenoids is a precise task, often necessitating expertise from a skilled diesel transmission mechanic

Clutch issues in diesel transmissions can manifest as slipping, hard shifting, or a complete inability to change gears. Causes can range from worn-out clutch plates to hydraulic system malfunctions. Identifying clutch problems typically involves examining the transmission's internal components, which can be a complex and labor-intensive process. Addressing these issues might require a partial or full diesel transmission rebuild, depending on the severity of the damage.

‍

Repair and Solutions for Diesel Transmission Problems

Replacing faulty solenoids is a critical task in diesel truck transmission repair. The process involves several steps:

1. Diagnosis: The first step in addressing solenoid issues involves using electronic diagnostic tools to identify faults. These scanners are connected to the truck's onboard computer system, which monitors various operational parameters. If a solenoid is failing, the scanner records error codes that pinpoint the specific solenoid causing issues. This initial diagnosis is critical as it ensures that the replacement process targets the correct component, avoiding unnecessary repairs and expenses.
2. Accessing Solenoids: Once a faulty solenoid has been identified, the next step is to access it, which can be one of the more challenging parts of the process. This typically involves removing various components of the transmission system, which can vary widely depending on the truck's make and model. Precision and care are necessary during this phase to avoid damaging other parts of the transmission and to ensure everything is correctly reassembled afterward.
3. Replacement: After accessing the faulty solenoids, the actual replacement can take place. This involves carefully removing the defective solenoids and installing new ones that match the specifications required by the truck’s transmission. This step must be performed with attention to detail to ensure that the new solenoids are installed correctly and securely.
4. Testing: The final step in the solenoid replacement process involves testing the transmission to ensure that it operates smoothly and correctly with the new components. This testing may involve both a stationary test, where the truck is run at various speeds while stationary, and a road test, which assesses the transmission’s performance under normal driving conditions.

This procedure requires precision and a clear understanding of the diesel transmission layout, making it advisable for complex cases to be handled by professionals. On the other hand, adjusting transmission bands is essential for maintaining the proper function of a diesel transmission. This process typically involves the following steps:

1. Locating Adjustment Screws: These screws are typically situated on the transmission casing and are integral for controlling the tension of the bands. This location varies depending on the model and make of the vehicle, so consulting the manufacturer’s manual is essential. It is critical to correctly identify these screws because adjusting the wrong component can lead to further complications.
2. Adjustment: Once the correct screws are located, the next step involves adjusting the bands. This is done by either tightening or loosening the screws according to the specifications provided by the manufacturer. The adjustment must be precise; if too tight, the bands can wear out quickly, and if too loose, the transmission may slip. A torque wrench is often used to achieve the exact tightness required, which ensures consistency and accuracy in the adjustment process.
3. Testing: After the adjustments have been made, it is imperative to test the transmission to ensure that it is functioning correctly. This involves running the vehicle in various conditions to check for smoothness in gear shifting and to ensure there are no unusual noises or vibrations from the transmission. If issues persist, further adjustments might be necessary, or professional help may be required.

Adjusting the transmission bands of a diesel engine is a delicate procedure that requires a detailed understanding of the vehicle's transmission layout. While experienced DIY enthusiasts can perform this task, the complexity and precision required often mean that it is best left to professionals. Continuing, regular changes in transmission filters and fluids are vital for transmission health. The steps include:

1. Draining: The first step in maintaining the transmission involves safely draining the old transmission fluid. Over time, this fluid accumulates particles and debris that can cause wear and damage to the transmission. The vehicle is usually elevated, and a drain pan is placed under the transmission to catch the old fluid. This step must be done carefully to avoid spills and ensure that all the old fluid is removed.
2. Filter Replacement: After draining the old fluid, the next step is to remove and replace the old transmission filter. This filter is crucial for capturing dirt, metal shavings, and other particulate matter, preventing them from circulating back into the transmission. A worn-out filter can reduce the effectiveness of the transmission fluid and lead to mechanical wear, so changing it regularly is essential for keeping the transmission in good working condition.
3. Refilling: After replacing the filter, new transmission fluid is added to the transmission to the specified level. It's vital to use the type and amount of fluid recommended by the vehicle manufacturer, as incorrect fluid can lead to transmission problems. This fluid helps lubricate, cool, and clean the internal components of the transmission.
4. Checking: The final step is to check for leaks and ensure that the transmission operates smoothly. This involves starting the vehicle and running it through all gears to check the fluid levels again, adjusting as necessary. A thorough test drive might also be conducted to confirm that the transmission shifts smoothly without any unusual noises or vibrations.

These intricate repairs require advanced knowledge and skills, often necessitating the expertise of a specialized diesel transmission shop. Undertaking such tasks without the necessary experience can lead to further damage and safety risks.

Choosing a Transmission Repair Shop

When selecting a repair shop for diesel transmission issues, it’s essential to prioritize expertise, reputation, and overall service quality. Diesel transmissions are more complex and robust than their gasoline counterparts, requiring specialized knowledge and hands-on experience for accurate diagnosis and effective repairs. Look for shops that employ technicians with specific training and certifications in diesel transmission systems. This expertise ensures that your vehicle will be serviced according to the latest industry standards and manufacturer specifications. Additionally, reviewing customer feedback and ratings can provide valuable insight into a shop’s reliability and customer service. Positive testimonials, especially those mentioning successful diesel transmission repairs, indicate a consistent track record of quality workmanship and trustworthy service. Service quality extends beyond technical skill; it also encompasses transparent communication, thorough inspections, and a clear explanation of repair options. Consider the shop’s accessibility and convenience, as well. Choosing a location that is easy to reach can reduce downtime and make follow-up visits more manageable. Entrusting your diesel transmission to a reputable, experienced shop with strong customer reviews and a commitment to high service standards will help ensure long-term reliability and optimal performance for your vehicle.

Cost and Long-Term Implications

Diesel transmission repairs can represent a significant financial investment, with costs varying widely depending on the extent of the damage and the complexity of the repair. Minor issues such as fluid leaks or solenoid replacements may be relatively affordable, but major repairs like a full rebuild or replacement can run into thousands of dollars. Ignoring early warning signs or deferring necessary maintenance often leads to more severe transmission failures, resulting in even higher repair bills and extended vehicle downtime. In the long term, neglecting transmission problems can also reduce fuel efficiency, shorten vehicle lifespan, and increase the risk of costly breakdowns.

Working with Diesel Transmission Components

Diesel transmissions differ significantly from their gasoline counterparts in several ways. Firstly, they are designed to handle higher torque and load capacities, reflecting the robust nature of diesel engines. Secondly, it often incorporates heavier, more durable components and may use different materials to withstand the increased stress. These differences mean that the repair techniques and considerations for diesel transmissions can vary greatly from those used in gasoline systems, necessitating specialized knowledge and experience.

Working with diesel transmissions requires handling heavier and more robust components. These parts are designed to endure the rigorous demands of diesel engines, including higher compression ratios and increased power output. As a result, mechanics often need specialized tools and equipment to handle these components safely and effectively. This aspect of repair emphasizes the importance of proper training and equipment when working on these systems.

It also often requires specialized tools that are not typically used in gasoline transmission repairs. These can include specific types of wrenches, heavy-duty lifts, and diagnostic tools capable of interfacing with diesel transmission systems. The use of these specialized tools is essential for efficient and safe repairs, ensuring that each component is handled correctly and that the transmission is properly calibrated after repair.

Preventive Maintenance for Diesel Transmissions

Many common diesel transmission issues can be prevented with proper maintenance. This involves adhering to the manufacturer’s service schedule, using the right type and quality of transmission fluid, and avoiding practices that strain the transmission, such as towing heavy loads beyond the vehicle’s capacity. Regularly updating the transmission’s software (in vehicles equipped with electronic control units) can also prevent issues related to the transmission’s performance and efficiency.

Implementing long-term care strategies for your diesel transmission involves a proactive approach to maintenance. This includes scheduling regular diesel transmission service appointments, which may involve more than just fluid and filter changes. It's also important to address any minor issues promptly before they escalate into major problems. Considering environmental factors, such as operating in extreme temperatures or rough terrain, and adjusting your maintenance practices accordingly can also extend the life of your transmission.

Regular service by a qualified diesel transmission mechanic is crucial in maintaining the health of your transmission. Professional mechanics have the expertise to spot issues that might not be obvious to the average vehicle owner. They can also perform more complex maintenance tasks that require specialized tools and knowledge. Regular professional servicing ensures that your transmission operates efficiently, provides optimal performance, and minimizes the risk of unexpected breakdowns and costly repairs.

The field of diesel transmission repair and maintenance is likely to evolve with technological advancements. Innovations in electronic diagnostics, new materials for more durable components, and potentially even a shift towards hybrid diesel systems could change the landscape of diesel transmission care. Staying up-to-date on these trends is crucial for both professionals and vehicle owners. Embracing these advancements will not only improve the efficiency and effectiveness of repairs but also ensure that diesel transmissions continue to meet the demands of modern transportation and industry. Ultimately, the goal remains to ensure that these vital components of diesel engines maintain their reliability and performance in an ever-evolving automotive world.

‍
